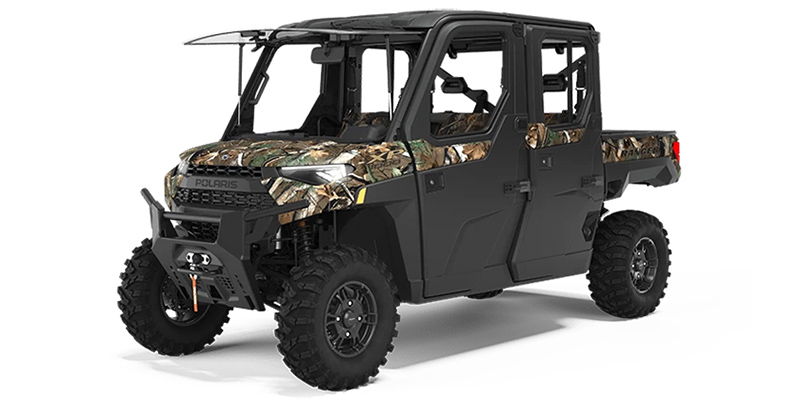

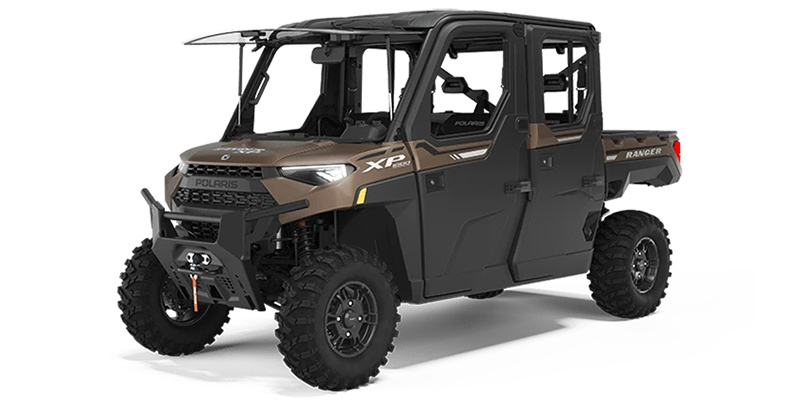

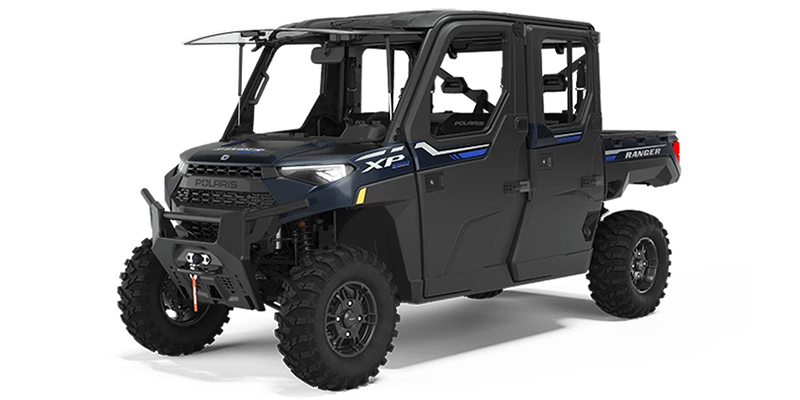

2023 Polaris Ranger Crew XP 1000 NorthStar Edition Ultimate

Call for Details

MSRP: $33,099 USD
Stock Photos - Actual Images Coming Soon

106 people have recently viewed it.
Check Availability Hi, my name is and I'm interested in this 2023 Polaris Ranger Crew XP 1000 NorthStar Edition Ultimate - Call for Details . I'm in the area and you can reach me at or on my phone at .
  • Status:
    New
  • Vehicle:
    2023 Polaris Ranger Crew XP 1000 NorthStar Edition Ultimate
  • Model Number:
    R23RS199A9
  • Location:
    Edwards Motorsports & RVs
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Type:
    Hydraulic Disc
  • Rear Brake Type:
    Hydraulic Disc

DRIVE LINE

  • Driveline Brand:
    On-Demand™
  • Driveline Type:
    Selectable 4X2 / AWD
  • Limited Slip Differential Location:
    Center
  • Number Of Driveline Modes:
    3

ENGINE

  • Bore (in):
    3.66
  • Bore (mm):
    93
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    10.8
  • Cooling:
    Liquid
  • Cylinders:
    2
  • Displacement (cc):
    999
  • Displacement (ci):
    60.9
  • Engine Brand Name:
    ProStar™
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Parallel Twin
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Horsepower (bhp):
    82
  • Horsepower (kW):
    61.2
  • Starter:
    Electric
  • Stroke (in):
    2.89
  • Stroke (mm):
    73.6
  • Valve Configuration:
    DOHC
  • Valves Per Cylinder:
    4
  • Valves:
    8

EXTERIOR

  • A-Arm Skid Plate (Front):
    Yes
  • A-Arm Skid Plate (Rear):
    Yes
  • Bash Plate (Front):
    Yes
  • Body Material:
    Plastic
  • Brush Guard:
    Yes
  • Cab Canopy Material:
    Hard
  • Cab Door Material:
    Hard
  • Frame:
    Steel
  • Full Length Skid Plate:
    Yes

GLASS

  • Folding:
    Yes
  • Folding:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Gauge

LIGHTS

  • Type:
    LED

SEATS

  • Headrest:
    Yes
  • Number Of Rows:
    2
  • Number Of Seats:
    6
  • Seat Material:
    Vinyl
  • Seat Type:
    Bucket

STEERING

  • Steering Control:
    Steering Wheel
  • Steering Type:
    Power

STORAGE

  • Bed Capacity (kgs.):
    454
  • Bed Capacity (lbs.):
    1000
  • Bed Height (in):
    12.5
  • Bed Height (mm):
    317.5
  • Bed Length (in):
    36.8
  • Bed Length (mm):
    933
  • Bed Width (in):
    54.3
  • Bed Width (mm):
    1378
  • Cargo Bed Material:
    Polyethylene
  • Cargo Bed Tilt:
    Yes
  • Integral Tie-Down Hooks:
    Yes
  • Number Of Cupholders:
    8

SUSPENSION

  • Front Adjustable Fork Pre-Load:
    Yes
  • Front Stabilizer Bar:
    Yes
  • Front Suspension Type:
    Independent Double A-Arm
  • Front Travel (in):
    10
  • Front Travel (mm):
    254
  • Number Rear Shock Absorbers:
    2
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Independent Double A-Arm
  • Rear Travel (in):
    10
  • Rear Travel (mm):
    254

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    1083
  • Dry Weight (lbs):
    2387
  • Engine Displacement to Weight (cc):
    0.42
  • Fuel Capacity (gal):
    11.5
  • Fuel Capacity (l):
    43.5
  • Ground Clearance (in):
    14
  • Ground Clearance (mm):
    356
  • GVWR (kgs):
    1701
  • GVWR (lbs):
    3750
  • Height (in):
    79.5
  • Height (mm):
    2020
  • Length (ft):
    12.67
  • Length (ft/ft):
    12
  • Length (ft/in):
    8
  • Length (in):
    152
  • Length (mm):
    3860
  • Payload Capacity (kgs):
    522
  • Payload Capacity (lbs):
    1150
  • Towing Capacity (kgs):
    1133.9
  • Towing Capacity (lbs):
    2500
  • Turning Radius (ft):
    17
  • Wheelbase (in):
    113
  • Wheelbase (mm):
    2870
  • Width (in):
    65
  • Width (mm):
    1651

TOWING & HAULING

  • Rear Hitch Type:
    Receiver
  • Size (cm):
    5
  • Size (in):
    2
  • Weight (kgs):
    2041.2
  • Weight (lbs):
    4500
  • Winch Brand Name:
    Polaris

TRANSMISSION

  • Hi / Low Range:
    Yes
  • Primary Drive (Engine / Transmission):
    Belt
  • Primary Drive (Front Wheel):
    Shaft
  • Primary Drive (Rear Wheel):
    Shaft
  • Reverse:
    Yes
  • Transmission Brand:
    Polaris Variable Transmission (PVT)
  • Transmission Type:
    Continuously Variable (CVT)

WHEELS & TIRES

  • Front Tire (Full Spec):
    Pro Armor® X-Terrain
  • Front Tire Diameter (in):
    29
  • Front Tire Width:
    9
  • Front Wheel Diameter:
    14
  • Rear Tire (Full Spec):
    Pro Armor® X-Terrain
  • Rear Tire Diameter (in):
    29
  • Rear Tire Width:
    11
  • Rear Wheel Diameter:
    14
  • Tire Brand:
    Pro Armor®
  • Wheels Composition:
    Aluminum
